Engine
Engine

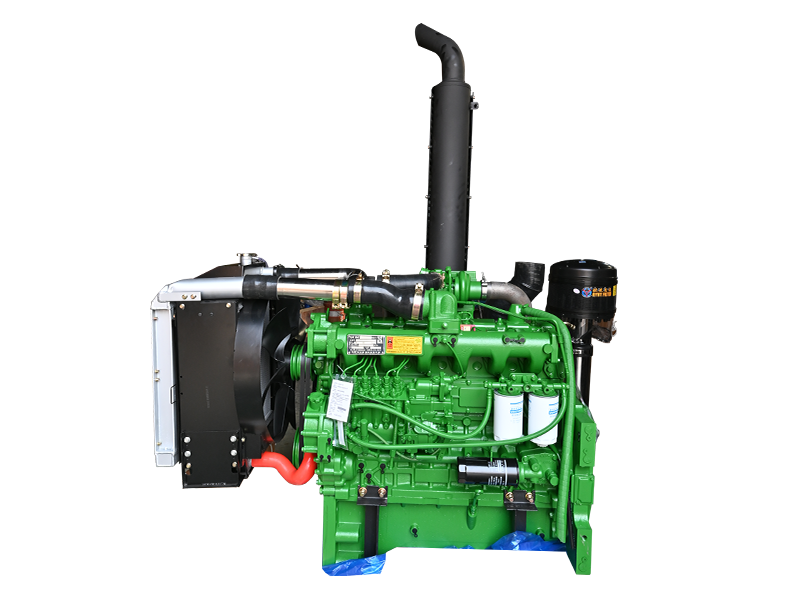

Luoyang drag diesel engine Co., Ltd., with profound industry experience and technical strength, to create this excellent performance, quality and reliable diesel engine products. This diesel engine is well-designed and stable, making it an ideal power choice for you in a variety of application scenarios.
Classification:
Product Details
| Main technical specifications of China "drag" TDR series diesel engine for construction machinery | |||||||||||||
| Model Parameter Parameter |
LD4105T | LD4108T | LD6105T | LD6108T | LD4105T | LD6105T | LD4105ZT | LD6105ZT | LD4105ZT Dry cylinder block |
LD6105ZWT Dry cylinder block |
|||
| Form Type | In-line, water-cooled, four-stroke, direct injection combustion house in—line,watercooled,4 stroke direct injectior |
||||||||||||
| Intake mode Airintake | Natural inhalation Naturally aspirated |
Pressurization Turbocharged |
Supercharged intercooling | ||||||||||
| Miss x Bore x Travel Number of cylinders x borex stroke |
4 × 105 × 125 | 4 × 108 × 125 | 6 × 105 × 125 | 6 × 108 × 125 | 4 × 106 × 135 | 6 × 105 × 135 | 4x105 × 125 | 6 × 105 × 125 | 4 × 105 × 125 | 6 × 105 × 125 | |||
| Displacement (L) Dispiacement |
4.33 | 4.58 | 6.49 | 6.87 | 4.68 | 7.01 | 4.33 | 6.49 | 4.33 | 6.49 | |||
| Compression ratio Compression ratio |
17:1 | 16.2:1 t’ |
|||||||||||
| Calibration condition Rated output |
Power kw Rated power |
60 | 63 | 88 | 92 | 60 | 88 | 70 | 115 | 88 | 132 | ||
| Speed r/min Rated speed |
≤ 2400 | ≤ 2400 | ≤ 2400 | ≤ 2300 | ≤ 2400 | ≤ 2400 | ≤ 2400 | ≤ 2300 | ≤ 2400 | ≤ 2200 | |||
| Maximum torque Working condition Maximum torque |
Torque N-m Torque |
>286 | >305 | >420 | >458 | >315 | >468 | >335 | >520 | >420 | >688 | ||
| Speed r/min Rated speed |
≤ 1800 | ≤ 1600 | ≤ 2000 | ≤ 1600 | ≤ 1800 | ≤ 2000 | ≤ 1800 | ≤ 2000 | ≤ 1800 | ≤ 1900 | |||
| Calibration condition fuel consumption rate g/kw · h Rated fuel consumptlon | ≤ 238 | ≤ 235 | ≤ 238 | ≤ 231 | ≤ 238 | ≤ 238 | ≤ 235 | ≤ 235 | ≤ 230 | ≤ 230 | |||
| Minimum fuel consumption rate g/kw · h Minimum fuel consumption |
≤ 224 | ≤ 224 | ≤ 224 | ≤ 220 | ≤ 225 | ≤ 225 | ≤ 216 | ≤ 216 | ≤ 216 | ≤ 216 | |||
| Oil consumption rate g/kw · h Oill consumption |
1.63 | 1.63 | 1.63 | 1.63 | 1.63 | 1.63 | 1.63 | 1.83 | 1.63 | 1.63 | |||
| Exhaust smoke Bosch Exhaust smoke intensity |
3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.0 | 30 | |||
| Noise dB(A)Noise | 98 | 110 | 98 | 113 | 110 | 113 | 113 | 113 | S8 | 98 | |||
| Emission Index Emissions | EURO 1 | EURO I | EURO I | EuRO 1 | EURO 1 | EURO I | EURO 1 | EURO I | EURO I | EURO I | |||
| Weight kg WeigM | 450 | 410 | 600 | 620 | 450 | 650 | 450 | 620 | 460 | 650 | |||
